Versa-Span™

Versa-Span™ system is a strong, durable, versatile, long length roof panel. It combines the strength of steel fluted pans and a lock-action rib design. Which together with concealed fasteners, enables installation on low pitched roofs.

UL logoNEW! Code Compliance UL Evaluation Report UL ER 25913-01

Features & Benefits

  • 12˝ to 18˝ coverage options available
  • 24 and 22 Tru-Gauge™

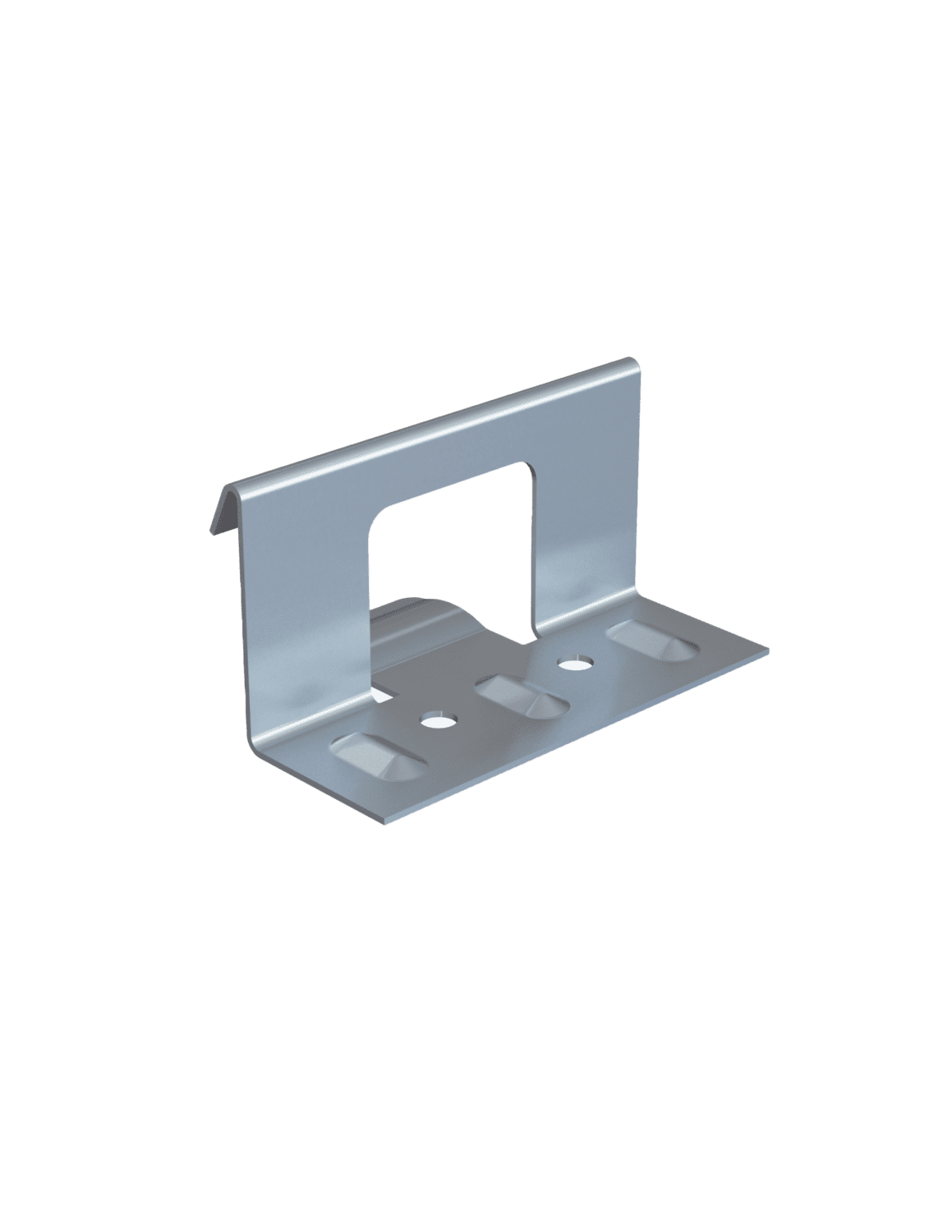

  • Floating clip system: allows for expansion/contraction of panels in longer lengths
  • Concealed fasteners: fasteners cannot leak
  • UL580 Class 90 wind uplift
  • UL Class A Fire & Impact Rated
  • ASTM E-1592-Structural uniform static air pressure: ASTM 1646- Water infiltration: ASTM 1680- Air infiltration
  • Weather tightness warranty available (Contact TMP representative for details)
  • 2:12 minimum pitch recommended: for lower pitches
  • Standard panel lengths 2′ to 65′: for longer panels
  • Onsite roll forming available for long lengths
  • Pan options: Flat pan, Accent ribs, Striations
  • Retro-fit systems available

Material Specifications

  • 26 gauge Kynar 500® Painted Steel .019˝ (thickness prior to painting) G-90 Galvanizing or AZ-50
  • 24 gauge Kynar 500® Painted Steel .0236˝ (thickness prior to painting) G-90 Galvanizing or AZ-50
  • 24 gauge bare Zincalume plus with Clear  Acrylic Coating-AZ-55
  • 22 gauge Kynar 500® Painted Steel .029˝ (thickness prior to painting G-90 Galvanizing or AZ-50: Select colors, see data sheet for details
  • 22g Rusteel™ (Cold Rolled)  Rusteel Plus™ (A606)
  • .032 Kynar 500® Painted Aluminum: Select colors, see data sheet for details
  • 16 and 20 ounce Copper

Finishes

  • 20 Standard Colors, 5 Metallic Colors and 5 Specialized Colors
  • Kynar 500® Paint System-the ultimate in exterior durabiity and color retention
  • “Cool” color pigments are specially designed to reflect infrared light, reducing heat gain to dwelling, and conform with ENERGY STAR® criteria
  • Superior quality, two-coat, 70% resin finish, applied at a 1 mil. thickness
  • 40-year residential paint warranty
  • 20 and 30 year commercial paint warranty: (Contact TMP for warranty specifications)
Versa-Span™ Data Sheet
Versa Span Install Guide
Kynar Color Charts
Kynar 500® Data Sheet Specifications
Metal Roof Panel Spec
Versa-Span-CAD
UL Evaluation Report
UL Class A Fire & Impact Rated
Kynar 30 Year
Commercial Paint Warranty
Kynar 30 Year
Residential Paint Warranty
Zincalume 25 Year
Warranty

20 Year
Weather Tight Warranty
10 Year
Weather Tight Warranty
5 Year
Weather Tight Warranty

  • Long term cost less expensive than composition or tile roofs
  • Roofing system will last 40+ years
  • 27 colors to chose from
  • Low to little maintenance, wash it off and you’re done
  • Perfect for high wind areas and snow country
  • 40 year paint fade warranty
  • Class A fire rating
  • Energy Star Cool Rated color lower energy cost
  • Solar panel compatible
  • Manufactured with recycled material
  • Quieter than you think
  • Weighs less than composition and tile roofs
